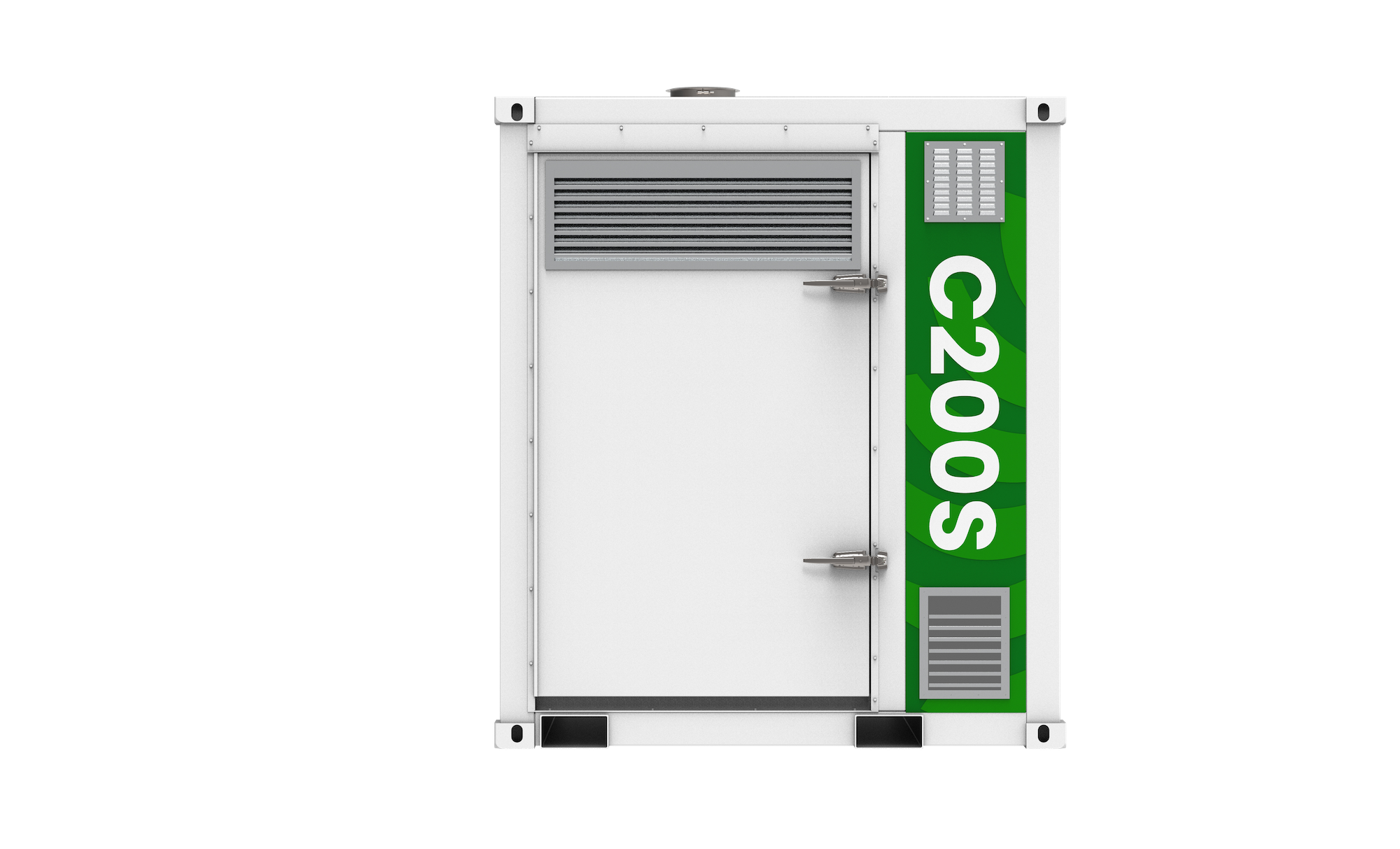

C200S
Expandable
Can be paralleled up to 30MW of power
Specifications
Rating:
200 kw Electrical
Electrical Efficiency LHV:
33%
Combined Heat And Power Efficiency::
Up to 90%
Voltage:
400-480 VAC
Frequency:
50/60 Hz, Grid Connect
Electrical Service:
3-Phase, 4-Wire Wye
Width:
3.0 m (117 in)
Depth:
2.5 m (100 in)
Height:
3.8 m (148 in)
Weight:
Grid Connect – 6,000 kg (13,200 lbs); Dual Mode – 6,700 kg (14,700 lbs)
Net Heat Rate LHV:
10.9 MJ/kWh (10,300 BTU/kWh)
Exhaust Temperature:
280 ºC (535ºF)
Exhaust Gas Flow:
1.3 kg/s (2.9 lbm/s)
Compatible Fuels:
Pipeline Natural Gas
Data Sheets
C200S Digester Gas C200S High Pressure Natural Gas C200S HP Sour Natural Gas C200S ICHP High Pressure Natural Gas C200S ICHP Liquid Petroleum Gas C200S ICHP Low Pressure Natural Gas C200S Landfill Gas C200S Liquid Fuel C200S Liquid Petroleum Gas C200S Low Pressure Natural GasNotes
- Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
- Height dimensions are to the roofline. Exhaust outlet can extend up to 9.5 inches above the roofline.
- Specifications based on high pressure natural gas systems. Values may vary with other fuel types.
Specifications are not warrantied and are subject to change without notice.
